Regluing the glass front on the BeoLink 7000

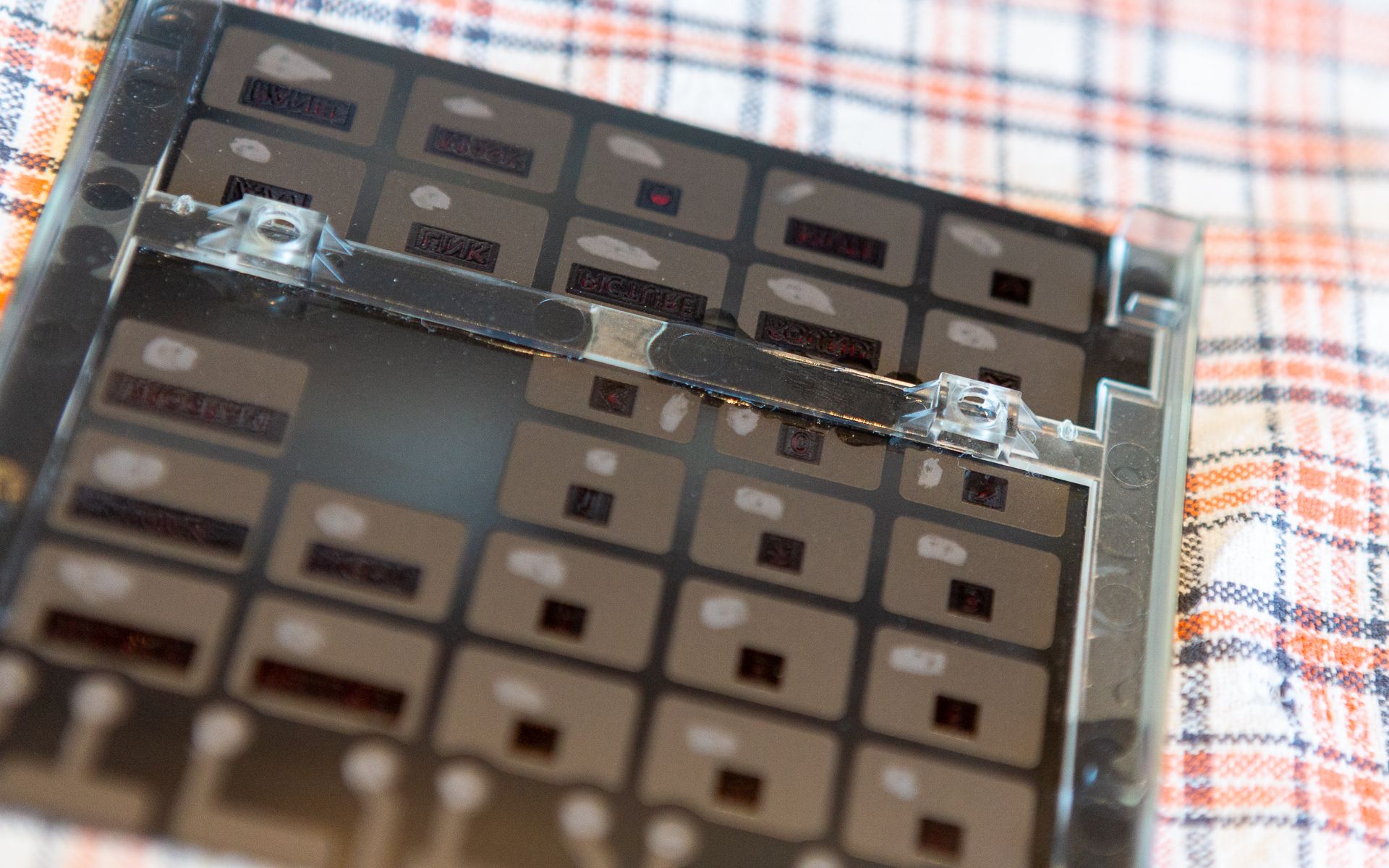

This one doesn't come up often, but now and then the adhesive that holds the plastic frame to the glass front of a BeoLink 7000 starts to let go.

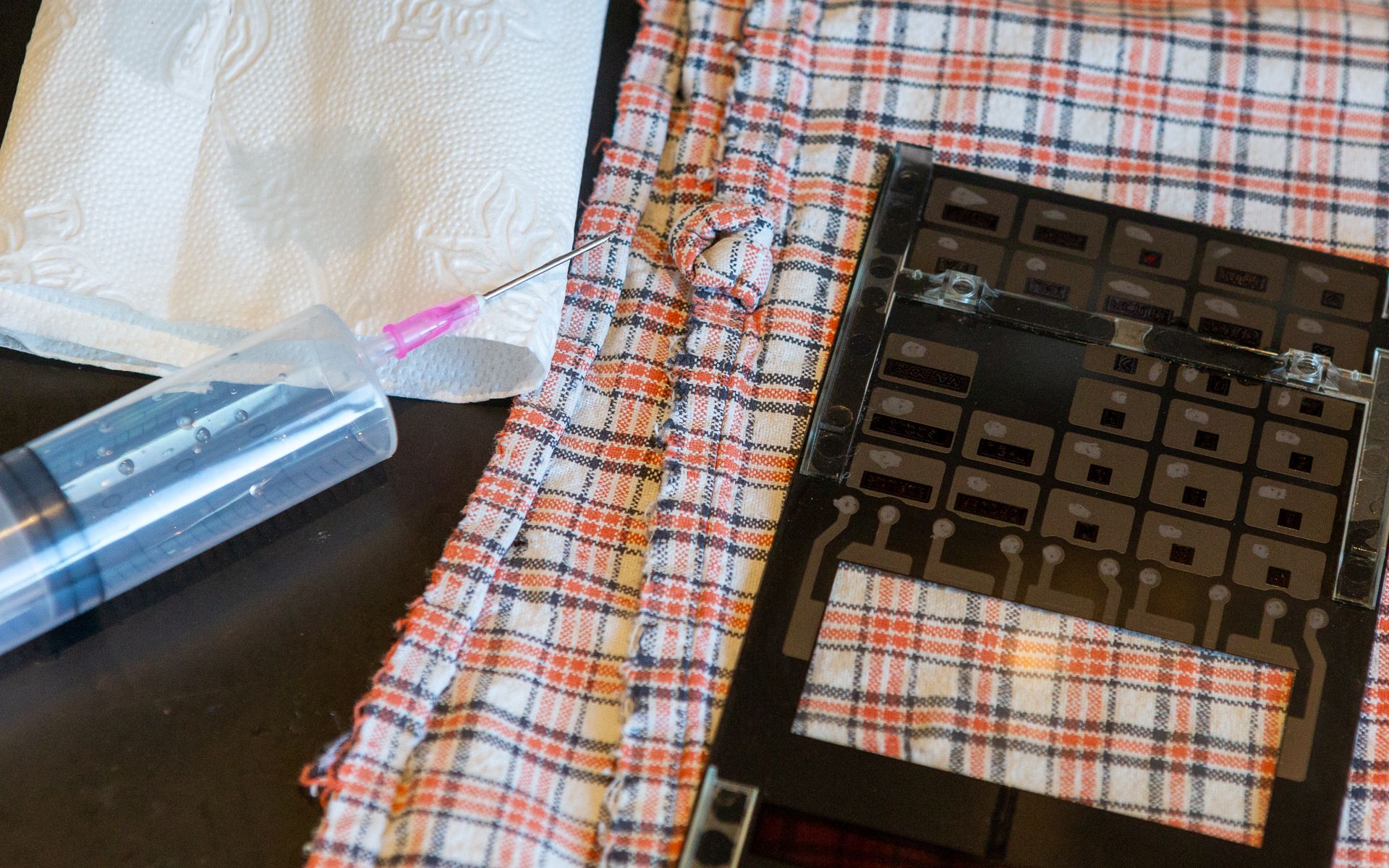

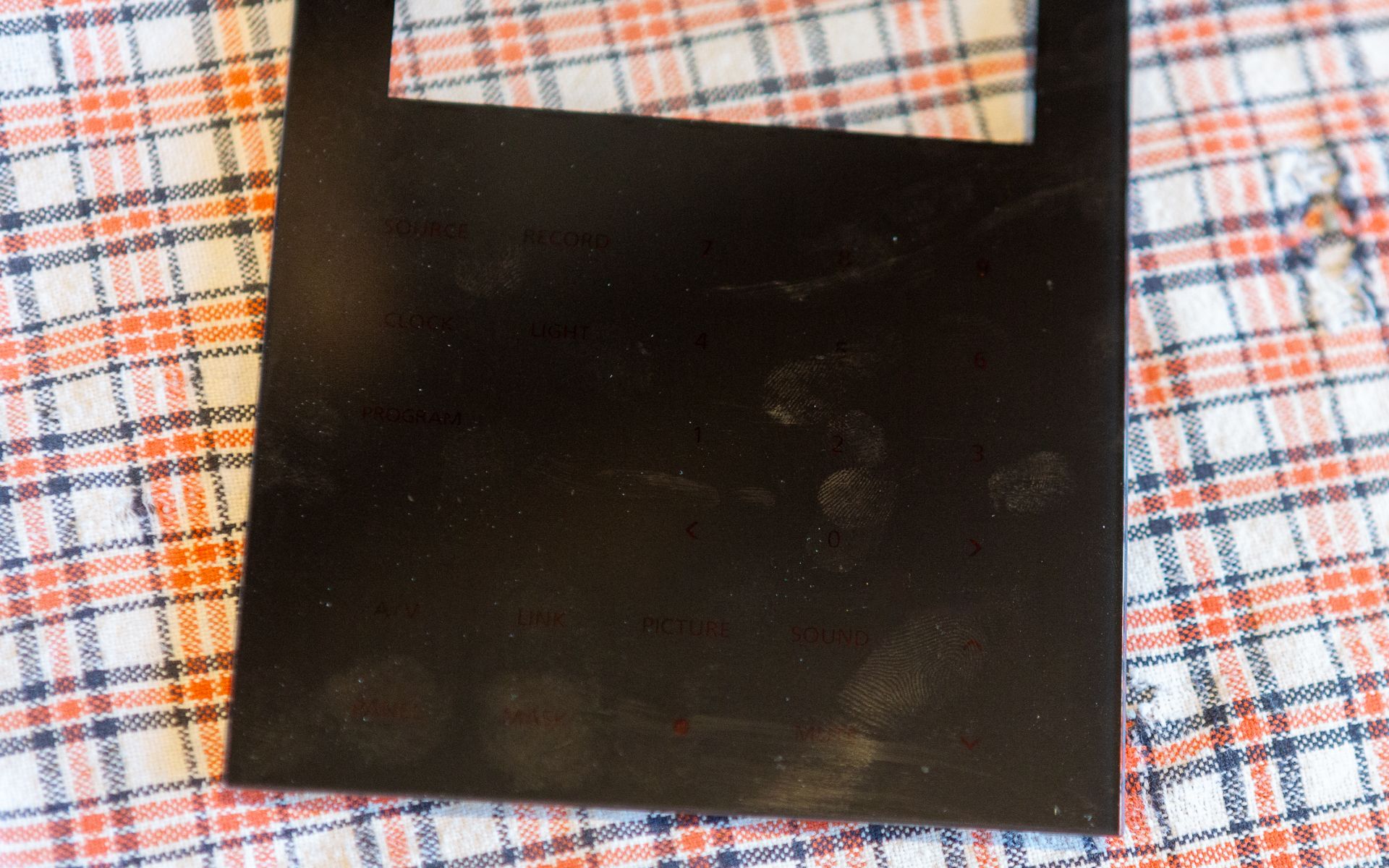

As long as the frame hasn't come off completely, I repair it in place. The service manual warns that the back of the glass must never be touched or cleaned with any liquid, so taking it apart is best avoided. I use a very thin, low viscosity superglue and apply it with a syringe and a fine needle, which puts the glue exactly where the bond has failed and lets it wick into the gap on its own.

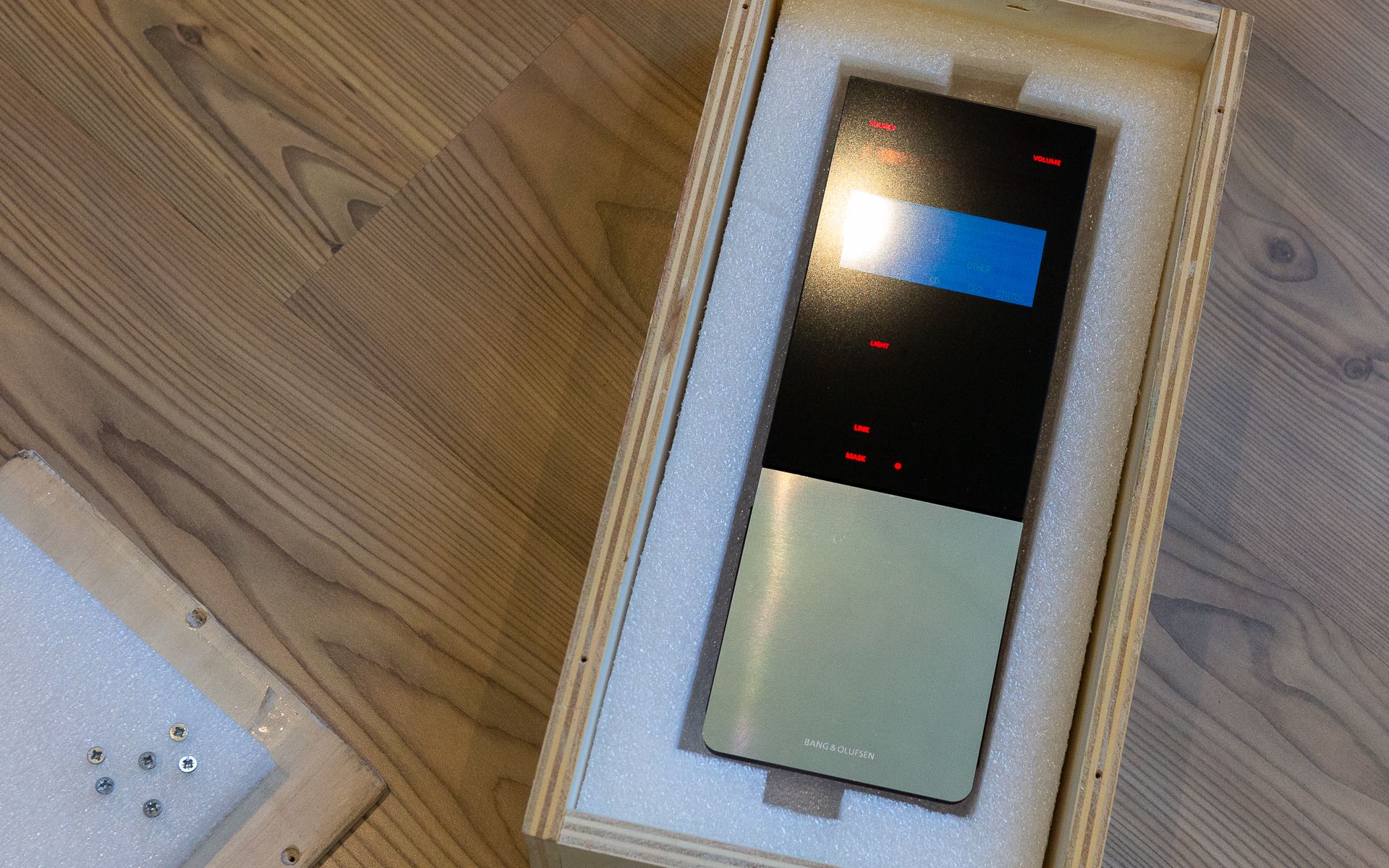

Once it has cured, the frame sits tight against the glass again.
