Replacing the batteries in the BeoLink 7000
The BeoLink 7000 has two batteries, the main battery (9009) and a lithium coin cell (9038) that keeps the processor's configuration when the main battery runs flat. A coin cell lasts up to about 8 years, and these remotes are from the 1990s, so the original is always long past it.

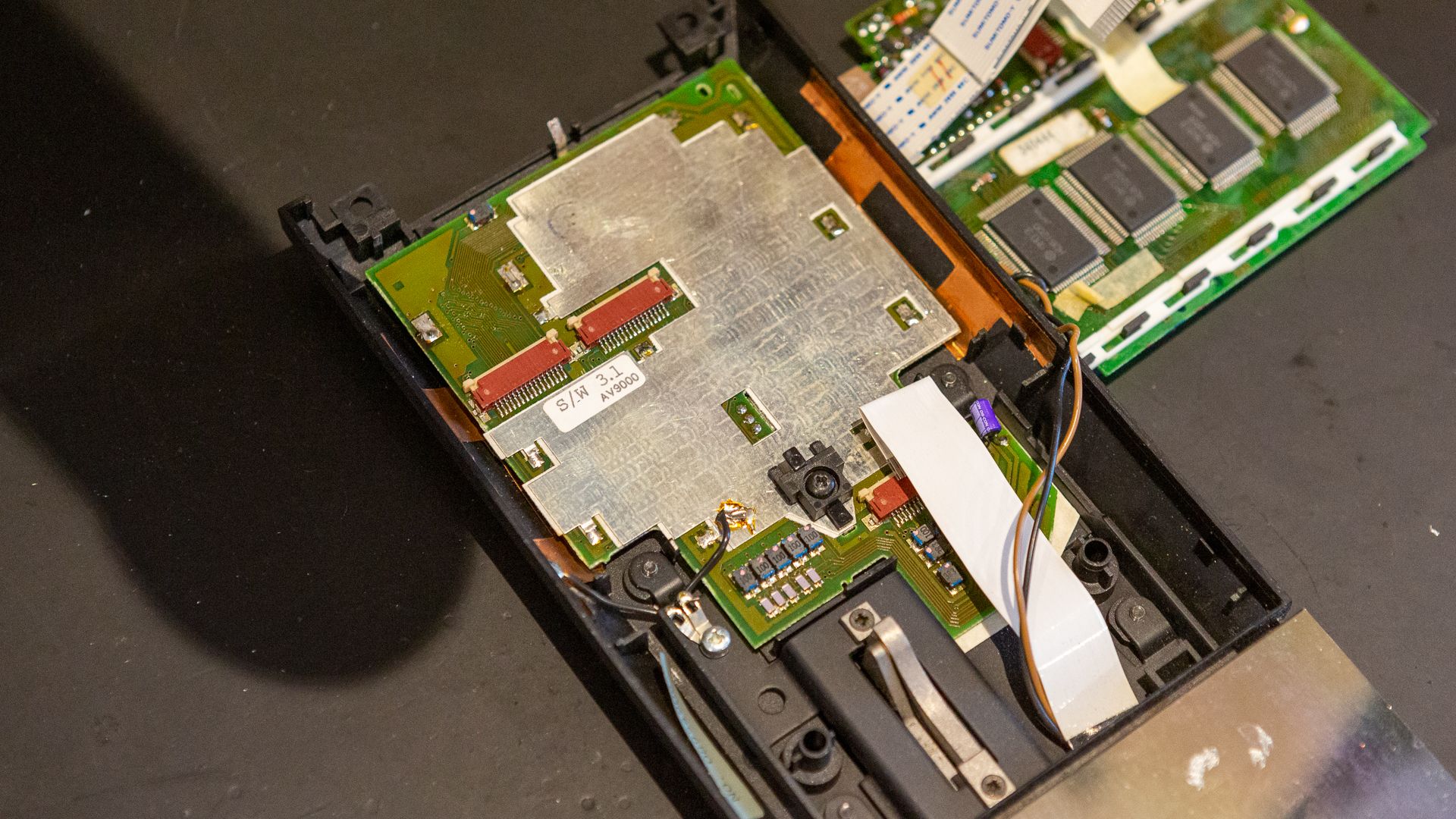

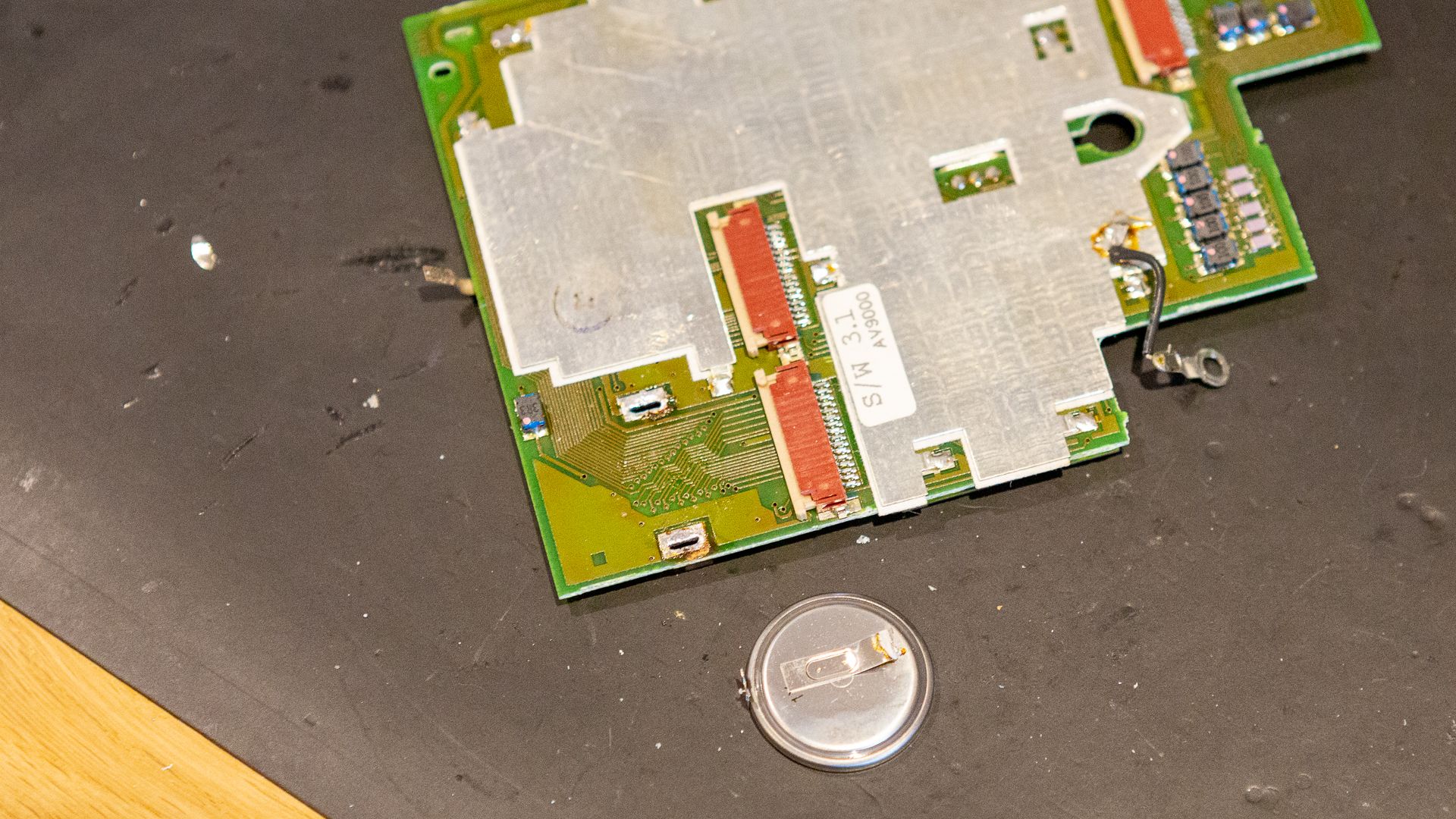

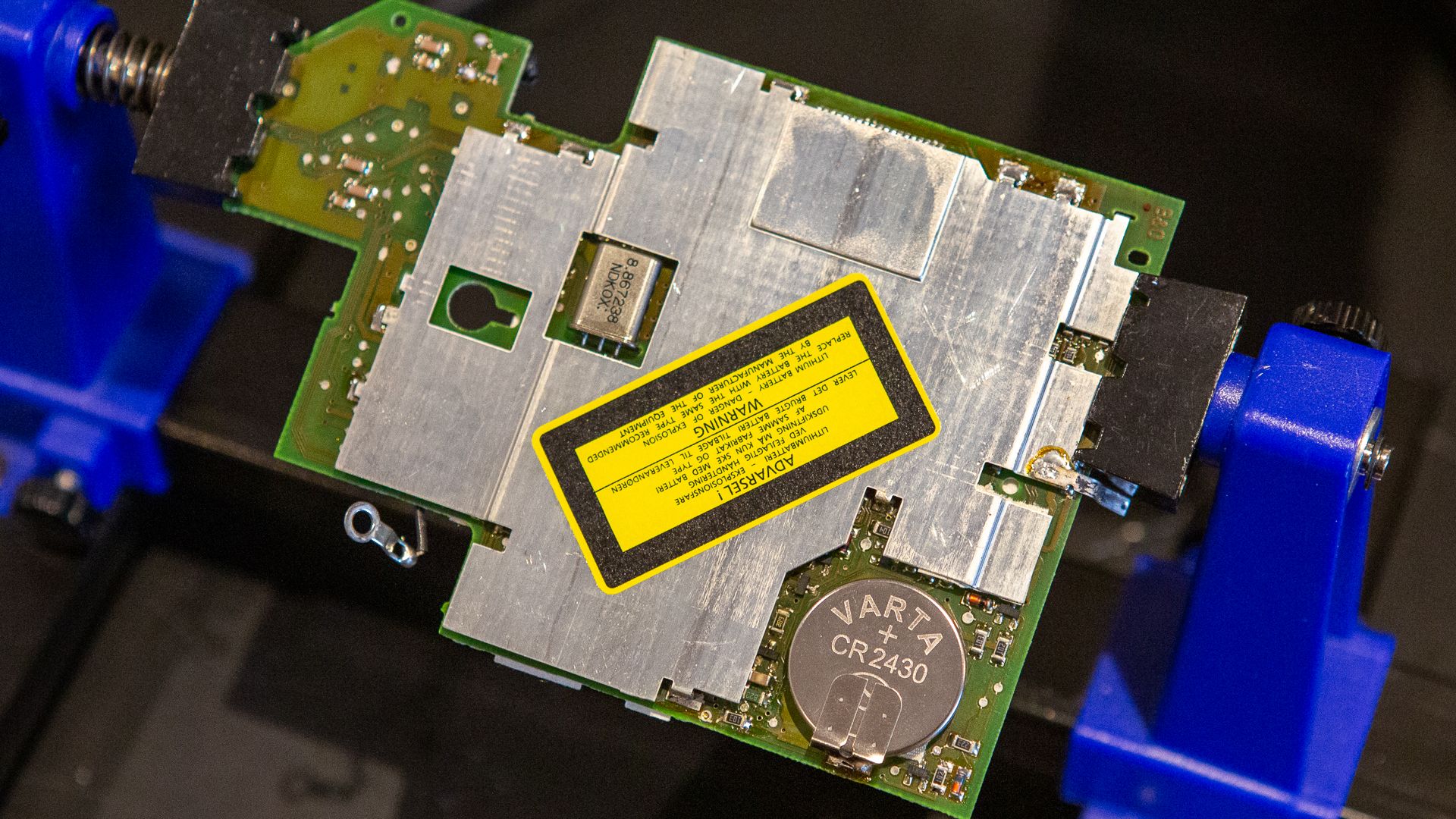

The coin cell sits on the main PCB, under the display and keypad. I fit a new cell with solder tabs, since soldering directly to a lithium coin cell can make it explode, and it goes in exactly like the original, as the service manual requires.

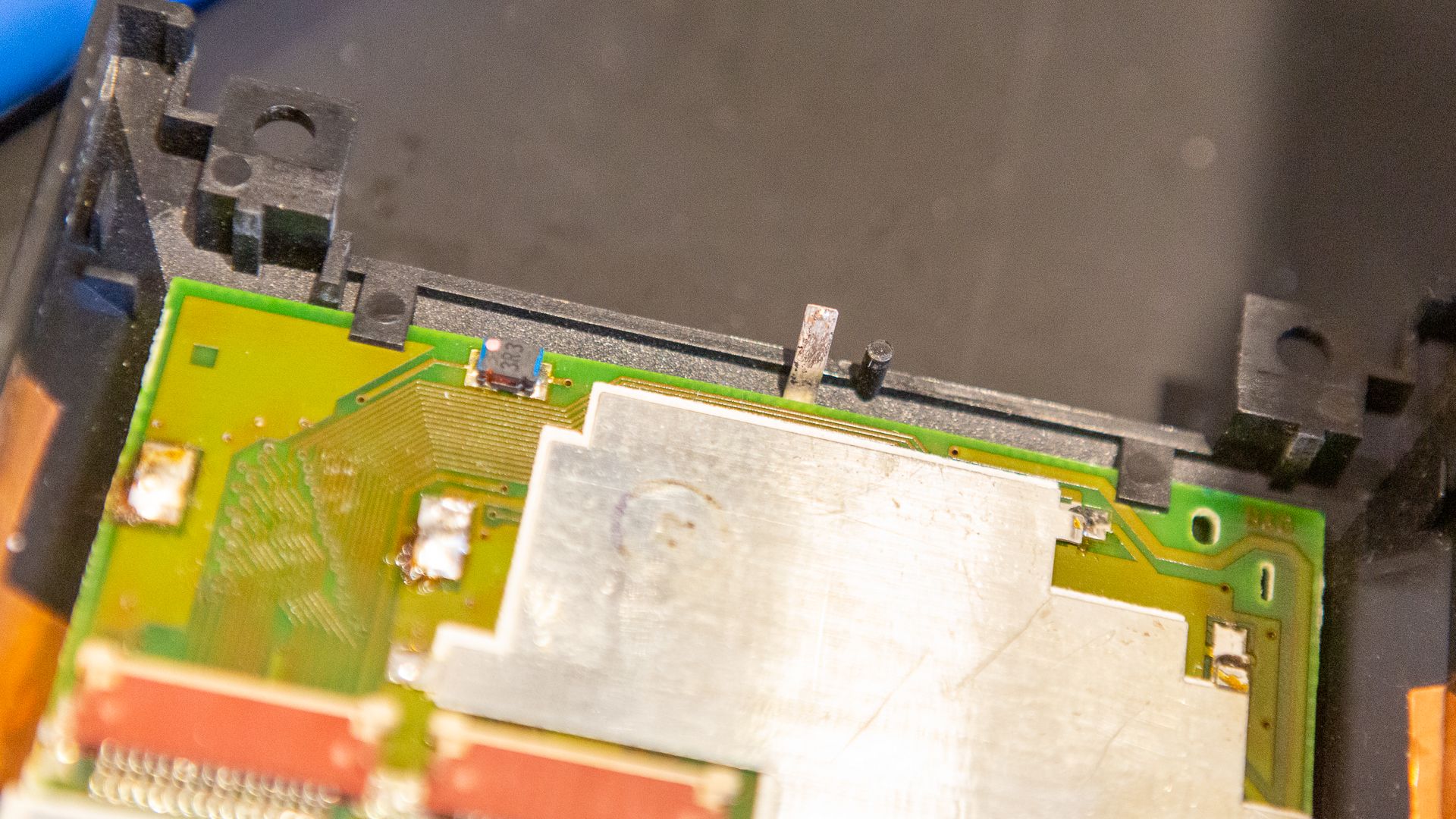

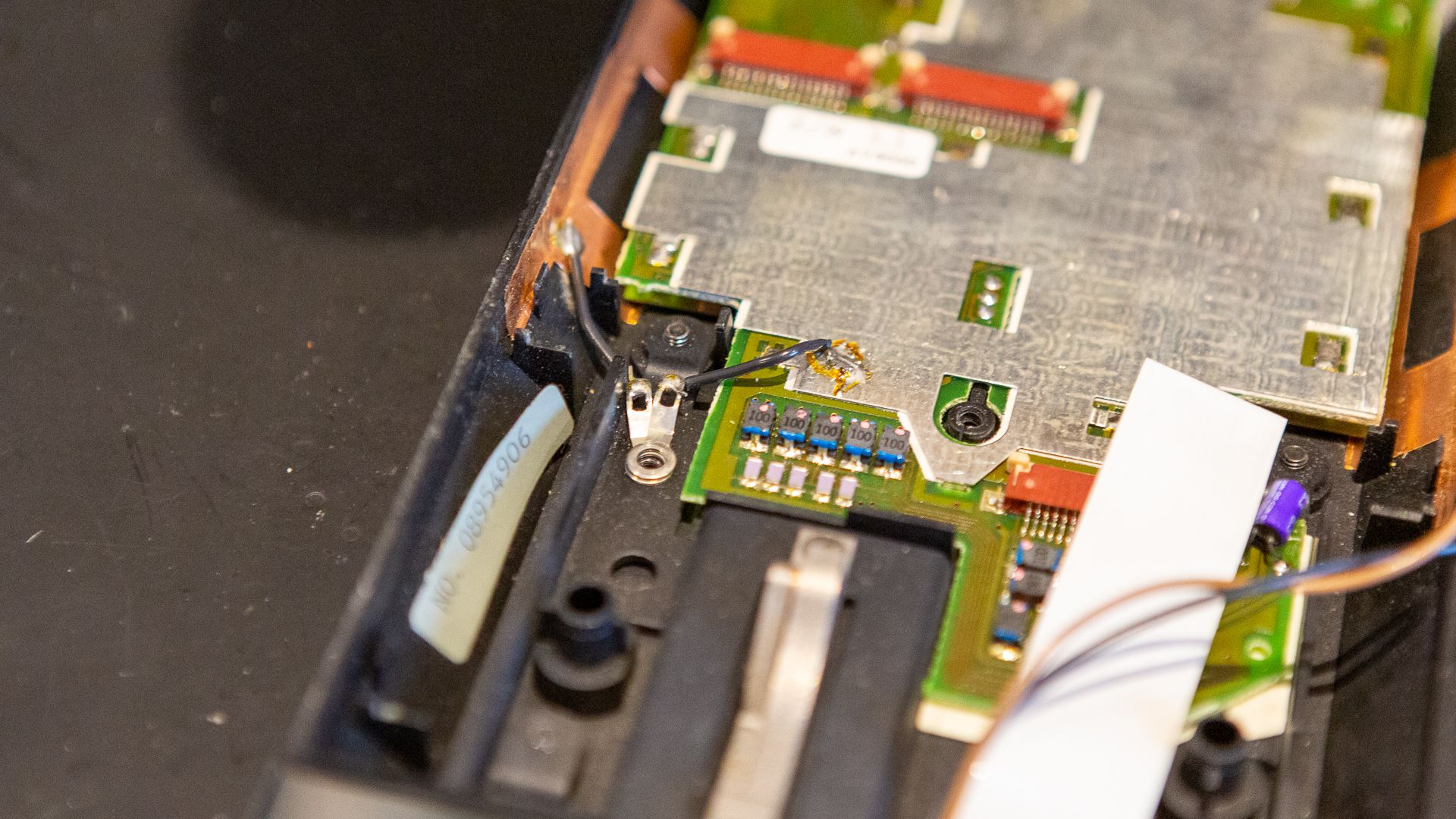

While the board is out, I clean the ground connector, replace the 4.7 µF capacitor and put a piece of tape on top of the PCB to protect it against shorts.
The main battery is replaced as well. It's soldered in, and its wiring tends to oxidise, so I fit new wiring with the new battery.
